4-inch Industrial TFT LCD,480x480,400cd/m2,RGB 40

FN0400D003A IPS TFT LCD

P/N:FN0400D003A

Active Area(mm):71.86x70.18

Resolution:480x480

Viewing Angle:80/80/80/80

Luminance:400

Interface: RGB 40

OP ℃: -20~70

ST ℃: -30~80

Specification Download

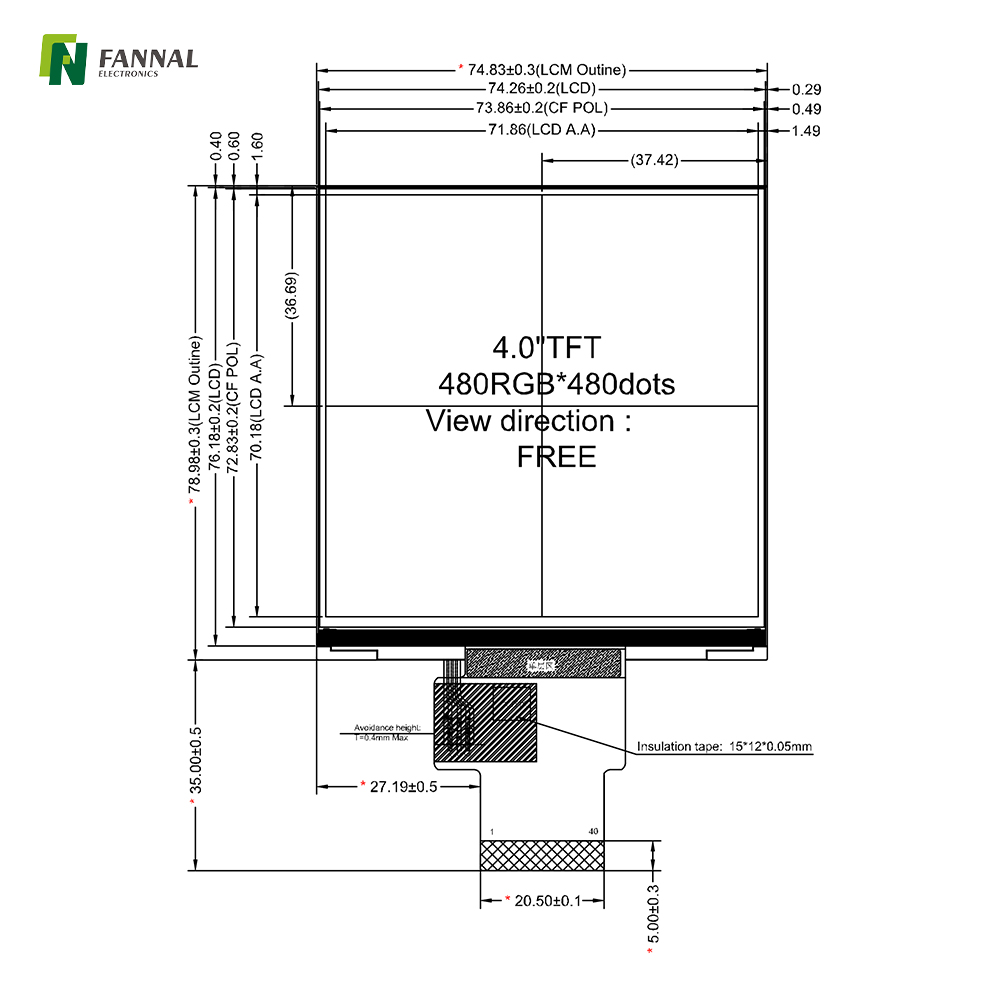

Specification drawing Specification

Product specification

Features :

IPS TFT Display

Add-Ons-CTP /AD Board

We can provide complete accessories, including CTP and backlight board, AD Board and wire sets.

Mechanical characteristics:

Item	Description	Unit
LCD Screen Size	4.0	inch
Active Area	71.86x70.18	mm
Resolution	480x480	mm
Viewing Angle(θT/θB/θL/θR)	80/80/80/80
Luminance	400	cd/m²
Interface	RGB 40
TP module	FN0400D003A
Outline Dimension	74.83x78.98x2.14	mm
